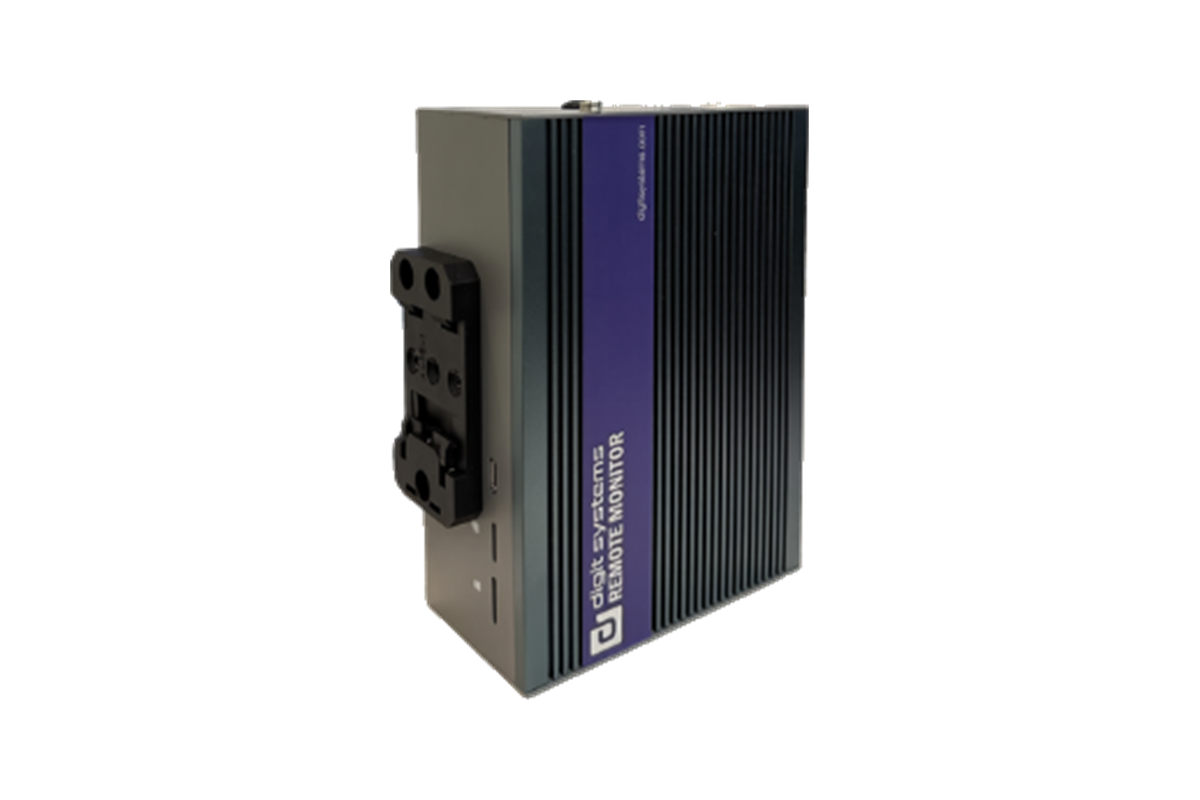

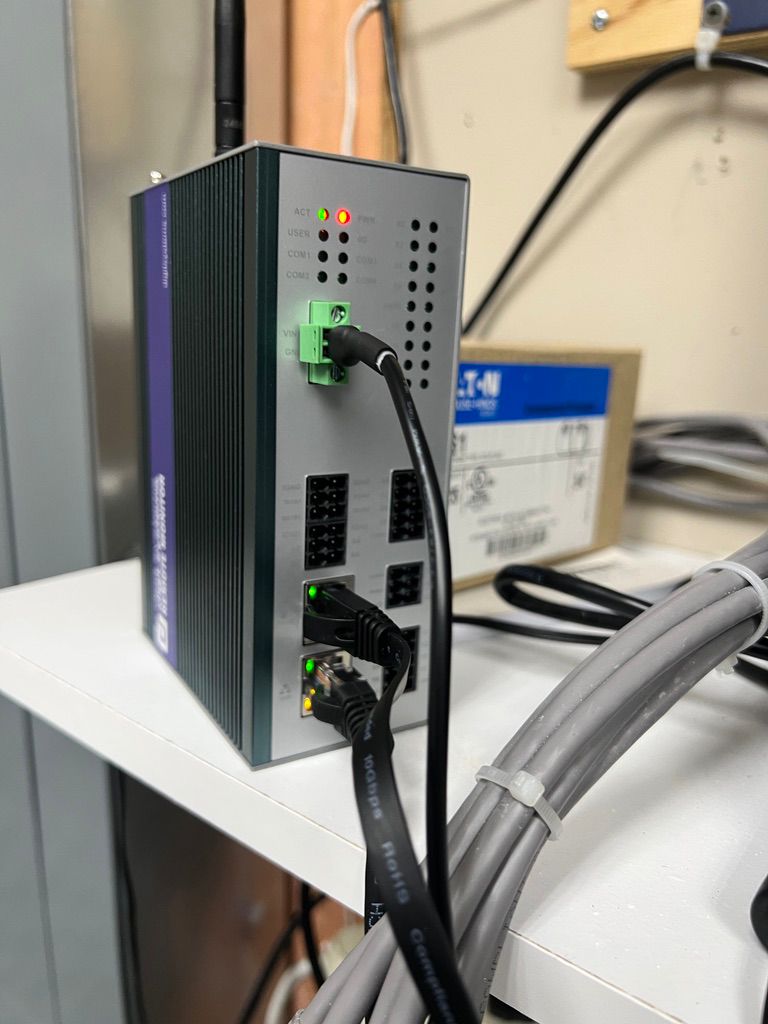

The Digit Systems MRI Remote Monitoring System connects on-site MRI equipment to the Digit Systems Service Hub, providing real-time visibility into critical operating parameters. Installed at the customer site, the compact monitoring unit collects data from compatible MRI and compressor interfaces and transmits it to the web platform through Ethernet or Wi-Fi.
For compatible Siemens systems, the unit can connect to the MRI CAN interface and a Sumitomo compressor communication port. For supported GE systems, integration is available through MagMon. This centralized access to system status and performance data helps service teams identify abnormal conditions earlier and support faster troubleshooting.
Compatibility and available monitoring parameters depend on the OEM, magnet model, compressor configuration, and site network. Contact Digit Systems to confirm the appropriate configuration for your MRI system.

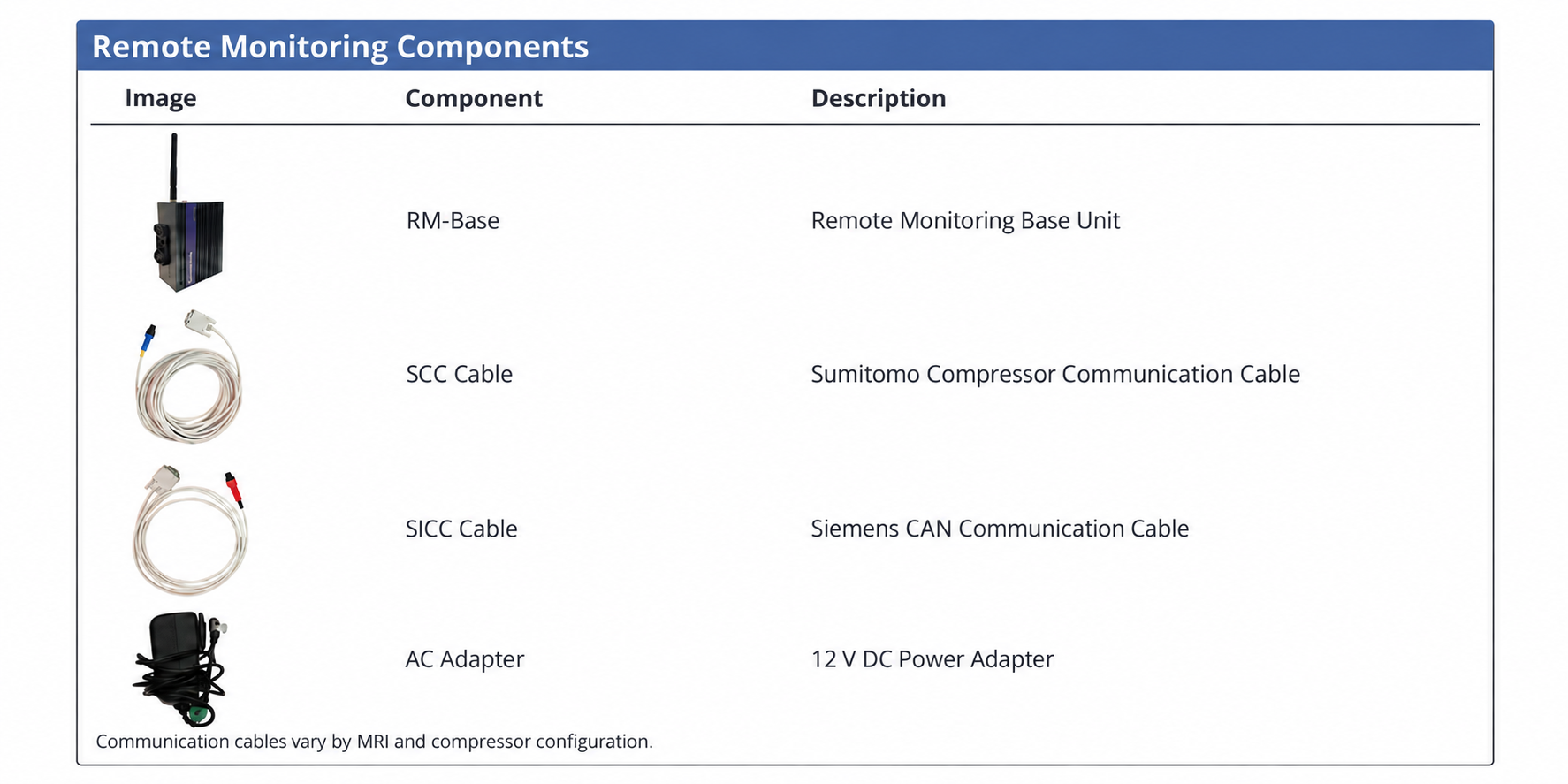

Standard Configuration

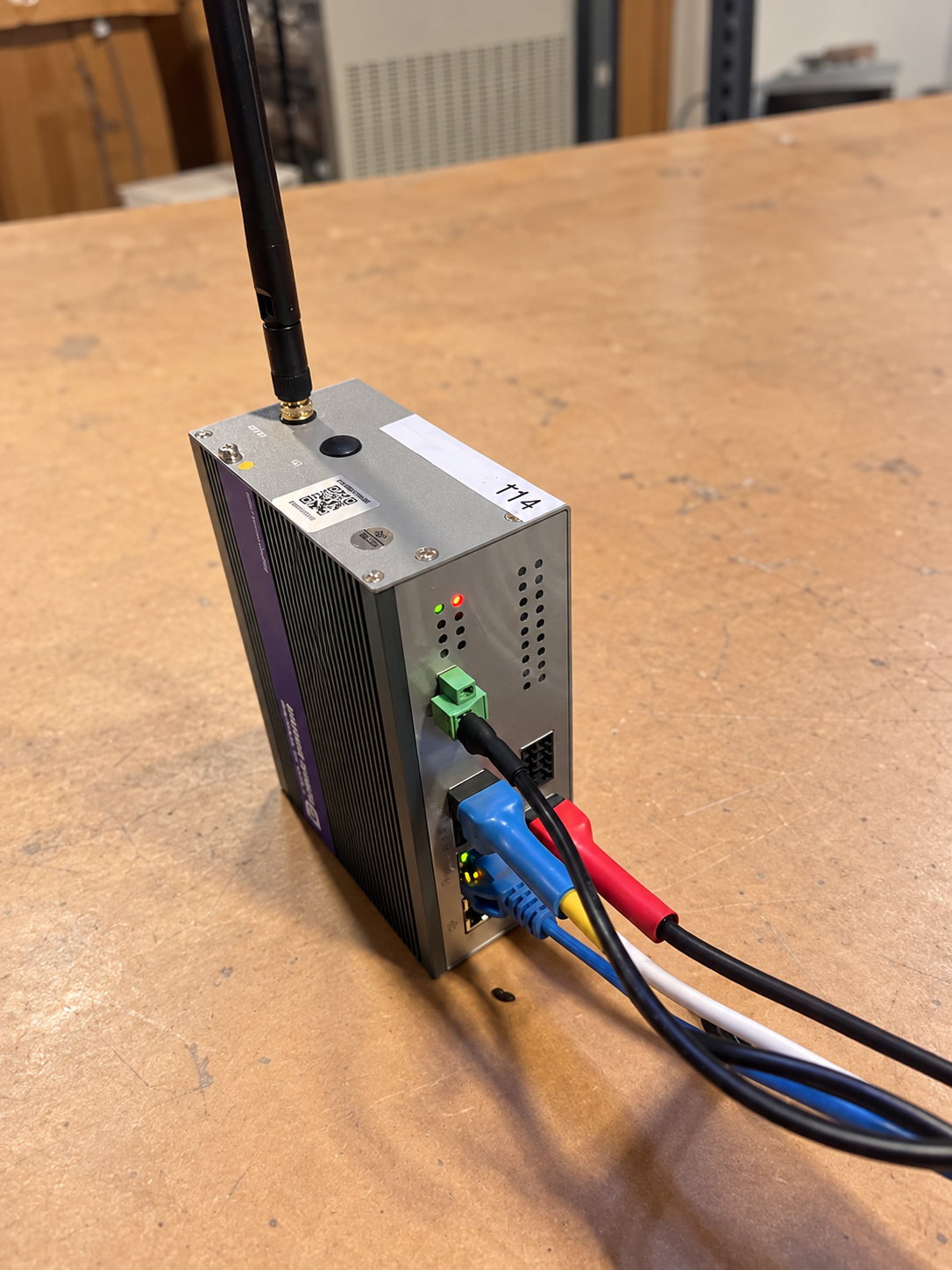

• Remote Monitoring Base Unit (RM-Base)
• Sumitomo Compressor Communication Cable (SCC Cable)
• Siemens CAN Communication Cable (SICC Cable), when applicable
• AC Power Adapter
Included components may vary depending on the MRI OEM, magnet model, compressor type, and monitoring configuration.
Input Voltage: 9–36 V DC
Maximum Power Consumption: 24 W
Power Adapter Output: 12 V DC, 2.0 A
Ethernet: 10/100/1000 Mbps RJ45
Wi-Fi: 2.4 GHz and 5 GHz dual-band
Bluetooth: Bluetooth 5.0

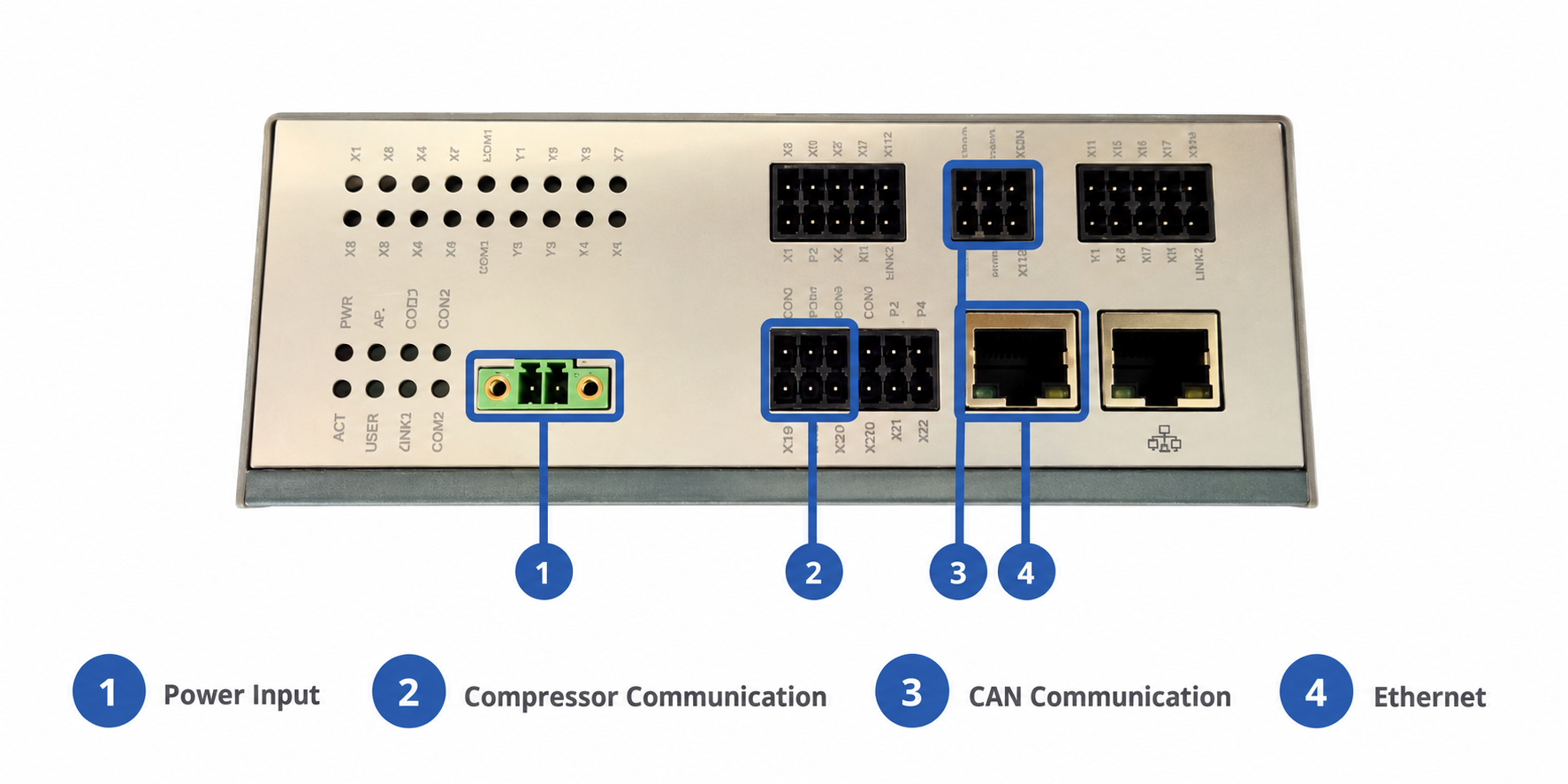

Communication Interfaces: MRI CAN and compressor communication
Network Connectivity: Ethernet or Wi-Fi

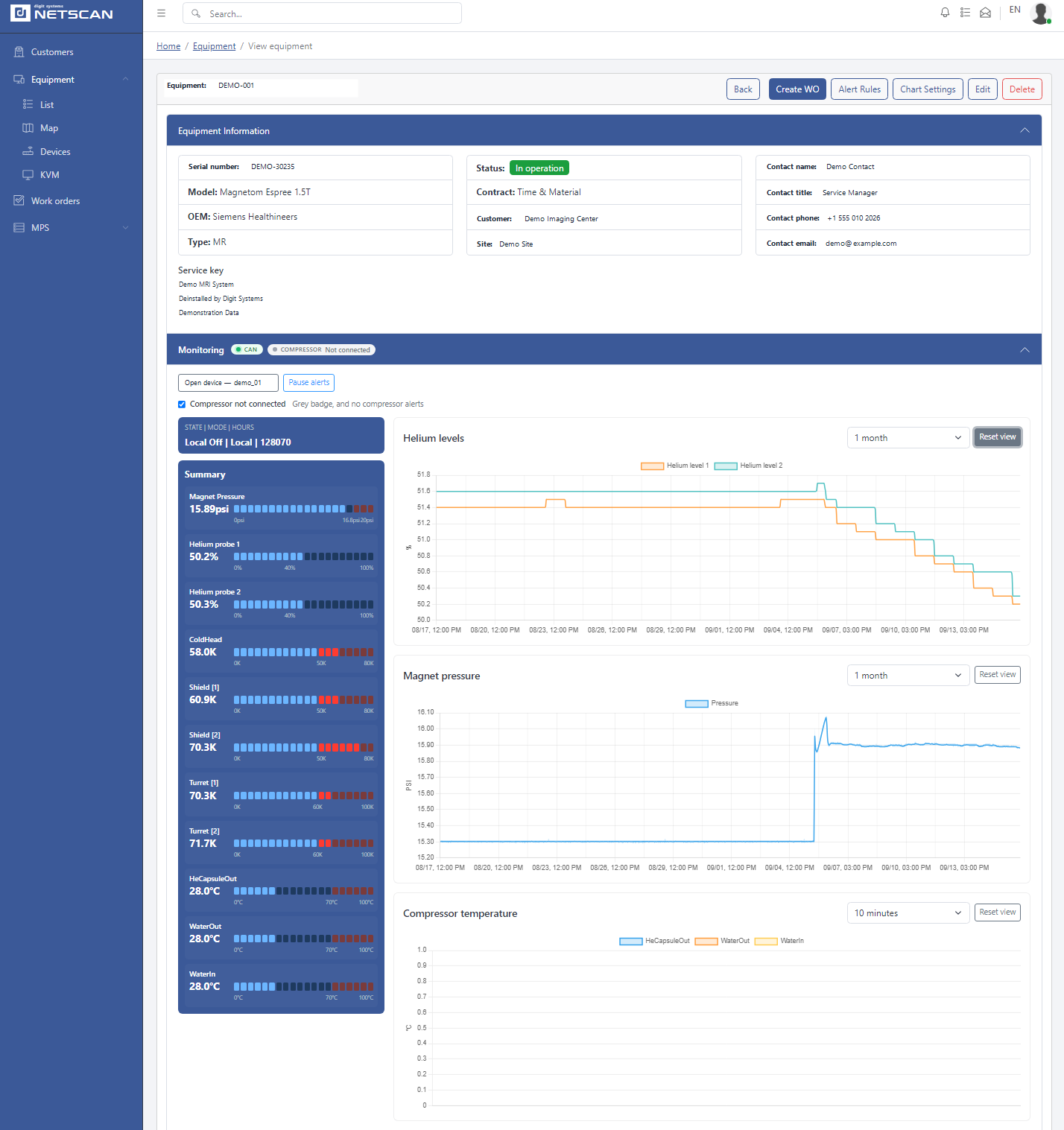

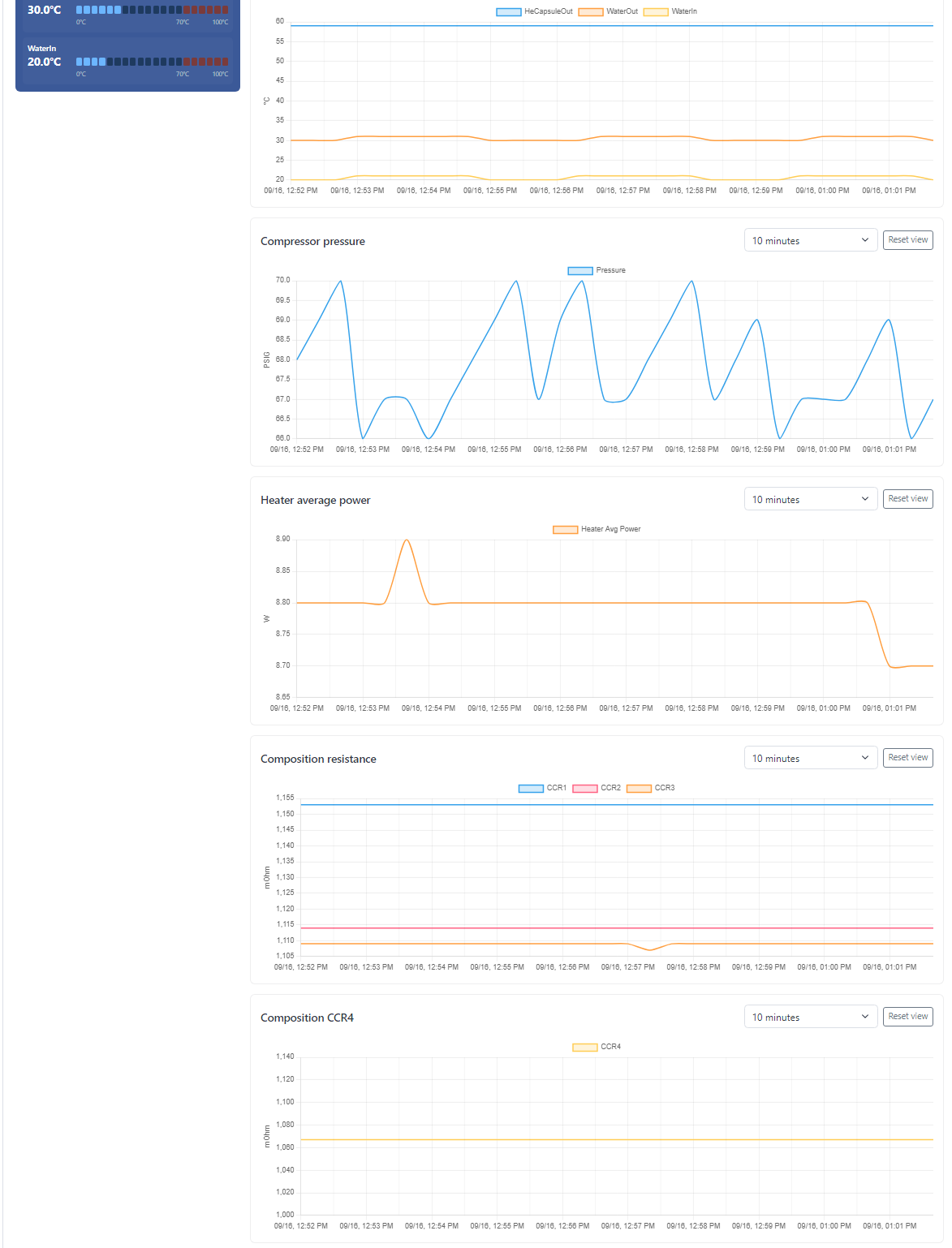

Monitoring Platform: Digit Systems Service Hub
[SIEMENS]
☑ Compatible Siemens MRI systems with supported CAN communication
☑ Supported Sumitomo compressor configurations
[GE]
☑ Supported GE MRI systems through MagMon integration
Compatibility and available parameters vary by MRI model, magnet configuration, compressor type, and site network. Contact Digit Systems to confirm compatibility.
